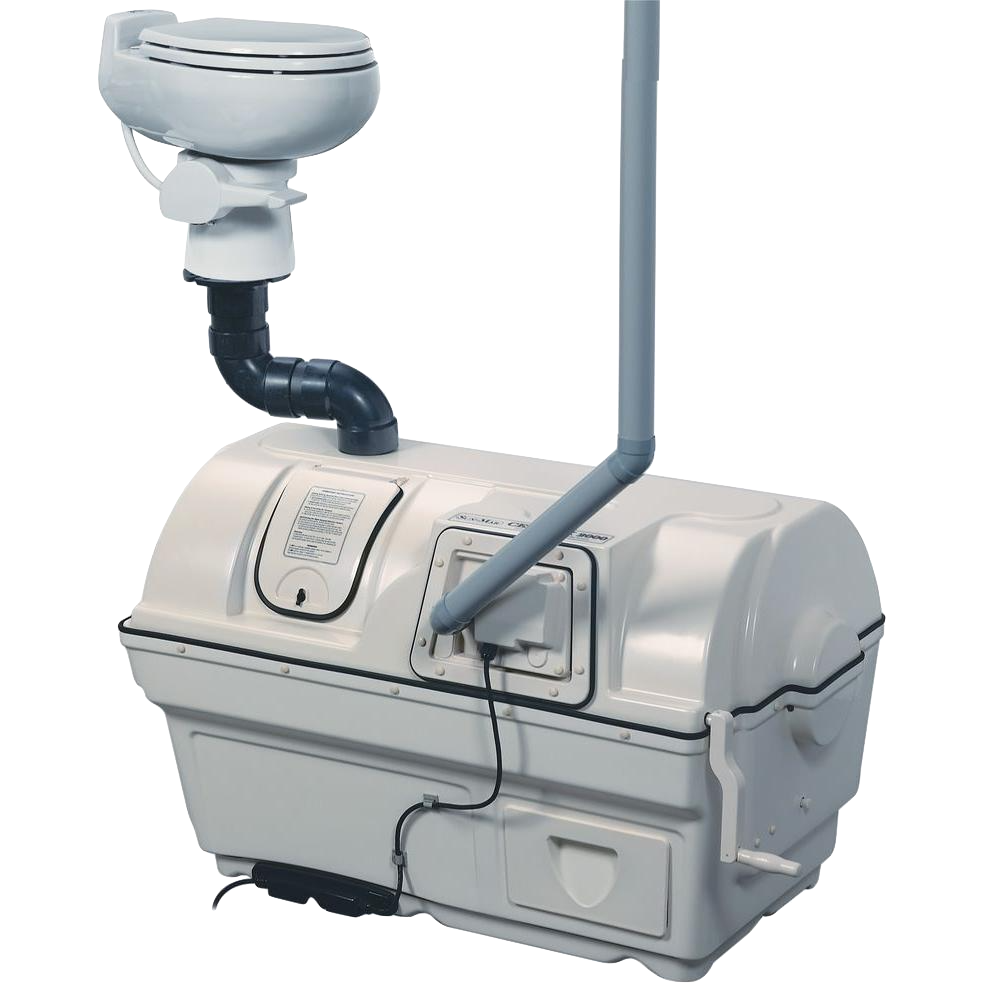

Centrex 2000 AF

$
The larger composting drum in the Centrex 2000 AF (Air Flow) allows a longer composting cycle, and larger waste volumes. The increased surface area in the evaporating chamber also provides better evaporation. When used seasonally by up to 9 adults, compost will normally only need to be removed annually at the beginning of the cottage season.

 If used in a residence, the drum would have to be rotated backwards to empty some compost into the finishing drawer once every few months, where it remains to finish composting before removal. The Centrex 2000 AF (Air Flow) is designed for use with a Sun-Mar Dry Toilet (purchased separately). This unit is ideal for those who do not have water, but still want the composting action to take place outside of the bathroom area. The Centrex 2000 AF is normally able to evaporate all liquids, so the drains must be connected only if heavy use (i.e. use at or over maximum capacity, or residential use) or prolonged power outages are expected. The Centrex 2000 AF features a 370 watt thermostatically controlled heater in a sealed compartment under the unit and the standard Sun-Mar 30 watt turbo fan, with a 2" vent stack to remove the evaporate and fresh odors. The AF Waterless Kit (purchased separately) contains a 41" pipe piece that is 10" in diameter and is used to connect the dry toilet to the Centrex unit. The pipe piece can be cut to size and additional pieces ordered if necessary. The Dry Toilet needs to be directly above the unit so that there is a straight drop. This unit should evaporate all liquid unless it is being used heavily. A 1" drain hose is supplied for hooking up the drain in any case, since we recommend it for most residential use or heavier cottage use.
$2,099.00
Free Shipping On Orders Over $99

Details

The Sun-Mar Centrex 2000 is designed for medium to heavy cottage or light residential use. The Centrex 2000 is an electric unit for those with a constant electric supply. All Sun-Mar composting toilets incorporate a patented Bio-drum which ensures fast and odorless decomposition. Saves thousands of gallons of water, while recycling waste into soil. The unit is shipped fully assembled. A one pint flush toilet is required for use with this unit (sold separately). Seasonal capacity: 7 adults or families of 9. Residential use: 4 adults or families of 6. Other optional configurations available for this system include: 1) Waterless operation: This configuration requires the separate purchase of the Sun-Mar Dry toilet and the Sun-Mar A/F Waterless kit 2) Dual electric and non-electric operation: This configuration requires the separate purchase of the Sun-Mar AC/DC kit.

  • Uses little or no water
  • Recycles waste into fertilizing soil
  • No odor
  • Certified and listed by ANSI/NSF
  • Seat not included

Specifications

Capacity


Listed capacities refer to the amount of people, on average, using the unit per day. Do not pick a unit that is below your capacity.

Residential/Continuous (Adults/Families)

4 adults or families of 6

Seasonal/Vacation (Adults/Families)

6 adults or families of 8

Electricals


Electricals must be connected while the unit is in AC use for proper operation

Maximum Amps (With Heater On)

3.6

Fan Watts (Required or Optional Hookup)

35

RequiredHeater Watts (When Thermostat switches it on)

370

Average Power Use in Watts (Heater on 1/2 time)

200

Vent & Drains

Vent Pipe

2" PVC Thinwall

1" Drains (Required or Optional Hookup)

Optional

Weights (Lbs.) & Dimensions

Unit Height & Depth

28" by 27"

Unit Width & Width Required to Turn

45 1/2" by 49"

Product Weight/Shipping Weight

103-124

Shipping Carton Dimensions (W by L by H)

28 1/2" by 47" by 31"

Depth Required to Remove Drawer

45

Height to Bottom - Top of Waste Inlet Assembly

27 3/4 - 33"

Vent Inlet Center Distance From Rear - Left Side

11" - 12"

Waste Inlet Diameter (including flange)

10 3/4

Height to Center of Top of Vent Outlet Assembly

23 1/2
