That does not mean the cheapest mini split is always a bad purchase. A $700 to $1,000 Pioneer or Senville can be an excellent value for someone who already owns HVAC tools, understands flare connections and has the correct electrical circuit available.

For everyone else, the sticker price is the least useful number on the page.

The better comparison is total installed cost: equipment, installation tools, mounting materials, electrical work, professional commissioning and the cost of correcting a refrigerant leak if the first installation does not go as planned.

Why the Sticker Price Lies

Most inexpensive mini splits are advertised as "DIY-friendly," but that description can mean several different things.

A traditional flare-based system usually arrives with refrigerant stored in the outdoor condenser. The installer must cut or prepare the copper tubing, make flare connections, pressure-test the system, evacuate the lines with a vacuum pump and then release the factory charge.

Those steps require more than a drill and a wrench.

A first-time installer may need:

●        Vacuum pump: approximately $120–$250

●        Manifold gauge set and hoses: approximately $60–$150

●        Flare or eccentric flaring tool: approximately $50–$150

●        Mini-split torque wrenches: approximately $50–$120

●        Micron gauge, adapters and miscellaneous fittings: approximately $75–$200

Buying only entry-level equipment can keep the tool bill near $300. A more complete setup can exceed $700, especially if nitrogen pressure testing equipment is included.

There is also a warranty problem. Senville says pressure testing and evacuation must be completed by a licensed HVAC professional to preserve warranty coverage, and its warranty guidance states that DIY installation can void coverage.

That creates an awkward middle ground: the homeowner does most of the physical installation, then tries to find an HVAC company willing to finish, inspect or assume responsibility for equipment it did not sell.

A service visit may be relatively affordable, but professional mini-split labor commonly reaches $500–$2,000, while complete single-zone installations are often quoted between approximately $2,000 and $7,000 depending on the equipment and job complexity.

Electrical work can change the comparison again. Installing a new dedicated circuit currently averages roughly $570–$1,000 before unusual panel, wiring or drywall work.

A 24-by-24-Foot Detached Garage Example

Consider an insulated, wood-framed detached garage measuring 24 by 24 feet. Its 576-square-foot floor area may be suitable for a 12,000-BTU system, although an actual load calculation should account for climate, ceiling height, insulation, doors, windows and air leakage.

Here are two possible purchasing paths.

Path one: a $950 flare-based 230V mini split

●        Mini split: $950

●        Vacuum, gauge and flare tools: $400

●        Wall bracket, drain materials and line-cover accessories: $200

●        HVAC technician to evacuate, commission or correct the flares: $800

●        New 230V circuit: $700

●        Estimated total: $3,050

Path two: a $1,999 pre-charged 115V system

●        Mini split: $1,999

●        Wall bracket, drain materials and line-cover accessories: $200

●        Refrigerant tools: $0

●        Certified technician for the final pre-charged line connection: $200

●        New circuit: $0, assuming a suitable code-compliant outlet is already available

●        Estimated total: $2,399

The apparently expensive system costs approximately $651 less in this scenario.

Change the assumptions and the result changes. A competent installer who already owns the tools, selects a 115V flare system and completes perfect connections on the first attempt can install the $950 system for substantially less.

That is why budget flare brands deserve to win some value categories. They are inexpensive equipment, not necessarily inexpensive projects.

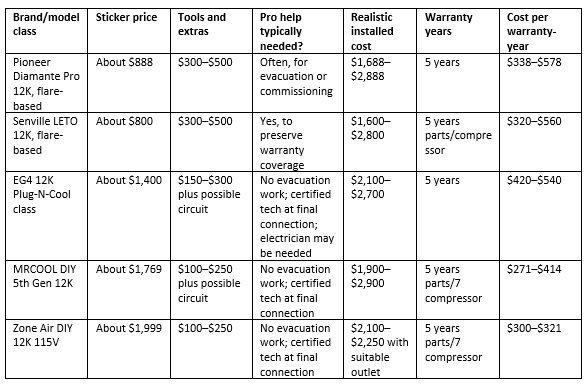

DIY Mini Split Cost Comparison

The following table uses representative 9,000–12,000-BTU single-zone systems and typical installation scenarios. Prices were checked in July 2026 and can change with promotions. Installed-cost estimates exclude sales tax, permits, major wall repairs and unusually long refrigerant or electrical runs.

Pioneer currently lists its 12,000-BTU Diamante Pro 115V system at approximately $888, while Senville lists its 12,000-BTU 115V LETO system at approximately $800. EG4's 12K equipment carries a five-year warranty, and one current distributor lists the hybrid version at approximately $1,400.

MRCOOL's 12K 5th Generation condenser is rated at 23.5 SEER2 and 115V, with a standard five-year parts and seven-year compressor warranty. Current dealer pricing begins around $1,769, although exact kit contents and line-set lengths should be checked before comparing totals.

Zone Air's current single-zone lineup begins at $1,899 for a 9,000-BTU 115V model, while the 12,000-BTU 115V system is approximately $1,999. The company lists pre-charged line sets, 23 SEER2 for the 115V 12K model and a five-year parts/seven-year compressor warranty.

For cost-per-warranty-year, the table divides estimated installed cost by the compressor-warranty period. This is not a prediction of service life. It is simply a way to compare how much protected ownership the initial budget purchases.

The Value Picks by Budget

Under $1,000: Pioneer or Senville for Tool-Owners

Below $1,000, Pioneer and Senville are the honest winners.

The Pioneer Diamante Pro provides a 12,000-BTU, 115V system rated around 20 SEER2 for less than $900. Senville's LETO 12K is similarly priced and includes a five-year parts-and-compressor warranty.

These systems make the most financial sense when the buyer:

●        Already owns vacuum and flare tools

●        Knows how to produce and inspect a proper flare

●        Has an appropriate electrical circuit

●        Can obtain professional commissioning at a reasonable price

●        Understands the manufacturer's warranty requirements

A homeowner installing several units can also spread the tool cost across multiple projects. A $500 tool kit is difficult to justify for one bedroom but much easier to justify across a house, workshop and rental property.

Della, Cooper & Hunter, Midea, Tosot and Perfect Aire compete in the same under-$1,000 flare category. The same tool-and-skills math applies to all of them, so judge each listing by its installation method rather than its brand name.

$1,500–$2,500: The True-DIY Tier

This is where pre-charged systems become financially persuasive.

The MRCOOL DIY 5th Generation uses a pre-charged quick-connect line set designed to avoid conventional evacuation and refrigerant work. Its 12K 115V condenser is rated at 23.5 SEER2, while larger 18K and 24K versions require 230V power.

Zone Air's pre-charged systems start at $1,899, run up to 24 SEER2, and plug into a regular 115V outlet, which keeps the electrician and the vacuum pump out of the budget.

That sentence needs one practical qualification: the outlet must be suitable for the unit's electrical load and compliant with applicable local code. A convenient receptacle is not automatically the correct receptacle.

For a standard single-zone installation, removing the vacuum pump, gauges and field-made flares makes the project cost much easier to predict, with the final line connection planned as a short certified visit.

When Professional Installation Is the Better Deal

DIY is not automatically the frugal choice.

Paying for professional installation may be better when:

●        The equipment qualifies for rebates only with approved installation

●        The home needs panel or service upgrades

●        The line set must pass through masonry or several finished rooms

●        The outdoor unit requires roof access or elevated mounting

●        The installation involves multiple indoor zones

●        The owner would otherwise buy hundreds of dollars in tools for one use

●        A premium professionally installed system carries materially better local support

A $5,000 professionally installed Mitsubishi, Daikin or Fujitsu system that includes design, permits, electrical work, labor and a strong labor warranty may be a better purchase than a $2,500 DIY project that the owner cannot confidently commission or repair.

The cheapest successful installation is better than the cheapest box.

Running Cost: What Higher SEER2 Is Worth

SEER2 measures seasonal cooling output divided by the electricity consumed over the cooling season. Higher is better, but the dollar difference is usually smaller than the efficiency labels make it feel.

Assume each system must provide 18 million BTU of seasonal cooling. Using the April 2026 national residential electricity average of 18.83 cents per kilowatt-hour reported by the U.S. Energy Information Administration, the approximate annual cooling costs would be:

●        17 SEER2: approximately $199 per year

●        20 SEER2: approximately $169 per year

●        23 SEER2: approximately $147 per year

●        24 SEER2: approximately $141 per year

●        28.5 SEER2: approximately $119 per year

Moving from 17 to 24 SEER2 saves approximately $58 per year under those assumptions. Over ten years, that is roughly $580 before electricity-price changes.

Efficiency matters, but it rarely rescues a badly overpriced or badly installed system. A $1,000 installation-cost difference can take more than a decade to recover through a modest SEER2 advantage.

Heating economics are more complicated. Compare HSPF2, low-temperature capacity and the amount of resistance or furnace backup required, not just SEER2. In a cold climate, heating performance can affect the annual bill more than a few points of cooling efficiency.

Where the DIY Savings Break Down

The favorable DIY math assumes a relatively ordinary installation:

●        One indoor unit and one outdoor unit

●        Wood-frame exterior wall

●        Short, accessible line-set route

●        Ground-level condenser

●        Suitable nearby power

●        No panel replacement

●        No major permit complications

Multi-zone equipment, masonry walls, difficult condensate drainage and long line runs erode the savings quickly. So do unusually hot garages, poorly insulated workshops and additions that need larger equipment than their square footage initially suggests.

The pre-charged line set eliminates part of the technical work. It does not eliminate equipment sizing, structural mounting, drainage, weather sealing or electrical safety.

Frequently Asked Questions

What is the best DIY mini split for the money?

For most first-time installers, MRCOOL and Zone Air offer the strongest balance between equipment cost and predictable installation cost because their pre-charged line sets avoid conventional evacuation and field-made refrigerant flares. Pioneer and Senville can cost less overall for buyers who already have the tools and skills.

Are DIY mini splits worth the cost?

Yes, when the installation is a straightforward single-zone project and the system is genuinely designed for homeowner installation. The savings become less certain with multi-zone layouts, masonry penetrations, panel upgrades, difficult line routes or installations that still require an HVAC technician.

What is the cheapest mini split with no vacuum pump needed?

Pre-charged or Plug-N-Cool systems from brands including EG4, MRCOOL and Zone Air can be installed without a conventional vacuum pump when their approved line-set system is used. EG4 equipment may have the lowest initial price in some configurations, while Zone Air offers 115V models starting at approximately $1,899 and MRCOOL has broad retail availability. Always confirm that the complete kit, not merely the outdoor unit, includes the required no-vacuum line set.

How much does DIY installation really save?

A standard homeowner installation can avoid approximately $1,500–$5,000 in contractor labor, refrigerant work and related installation charges, but actual savings vary widely. A tool-owner installing a simple flare system may save more. A project requiring electrical upgrades, specialty access or professional correction may save considerably less.

The financially correct comparison is never mini split price versus mini split price.

It is working system versus working system.
